Heavy Duty Vacuum Cleaner

The range of machine is designed to serve as the continuous source of vacuum for heavy industrial use.

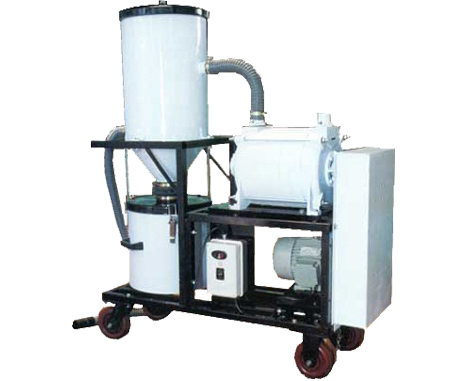

Vacuum Cleaner

Standard Features Incorporated

  • Robust & Compact Design.
  • Rigid Tubular Steel Frame to withstand Rough Handling.
  • All steel Construction of Filter Chamber & Dust Collection Chamber.
  • Modification of Vacuum Producer Ranging from Three to Eight Impellers in Series depending upon Vacuum Requirement.
  • Depending upon Vacuum Requirement.
  • Fabric Filter with Manual Shaking Arrangement to Relieve Filter Clogging.
  • Units Driven By TEFC Induction Motors.
  • Electric Overload Protection by means of Automatic Motor Starters.

Applications

  • Heavy engineering industries for oil, chip & dust collection.
  • Fertilizer, pharma, power stations, food processing as basic source of vacuum.
  • Continuous Flux recovery system for submerged arc welding processes.
  • Vacuum degassing in foundries to avoid micro porosity in castings.
  • Centralised vacuum systems for collection of both fine & large particles.
  • As Hopper loader for plastic processing industries.
Vacuum Cleaner

Additional special purpose fittings which can be added to the basic machine include

Cyclone Separator

Cyclone Separator for Fine Dust Collection.

Baffle Separator

Baffle Separator for Wet Collection & Chip Extraction.

Special HEPA & Micro Filters

Special HEPA & Micro Filters for very Fine Filtration Requirements.

Flameproof Motors

Flameproof Motors can be added to the basic machine.

Technical Specifications

Machine Vaclean-3 Vaclean-6 Vaclean-8
Motor 2 H.P. 3 H.P. 5 H.P.
Voltage 415 V 415 V 415 V
Vacuum Producer 3 Stage 6 Stage 8 Stage
Suction mm WG 1200 2200 2500
Air Displaceent (m3/Hr) 275 340 375
Capacity (Liters) 30 30 30
Approx Weight (Kg) 120 140 160
