Sump Cleaning & Oil Recycling Unit

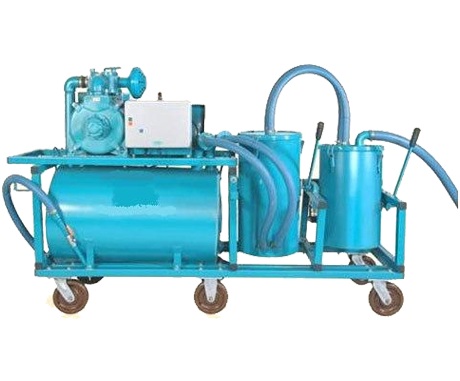

Our SUCOIL a Sump Cleaning & Oil Recycling Unit is a movable unit with a capacity of 200 litres. This machine is used in Heavy Duty Industrial areas for the purpose of collecting cutting oil along with chips, dust and other impurities. The time taken by this advanced mobile unit in order to complete the task is merely around 20 minutes. We also provide an accessory kit with the unit that includes collection hose, extension pipe and crevice nozzle with extension pipe.

Salient Features

The unit acts as a heavy duty industrial vacuum cleaner for sucking the contaminated coolant or cutting oil along with chips, dust and other impurities

By a simple mechanical movement the machine is set to discharge clean, filtered coolant or cutting oil back to the sump of the machine

Collection and filtration are immediate and simultaneous

Special collection nozzles provided for cleaning and collection

Total cycle time for collecting and filtration of 200 litres is approximately 20mins

Particles up to 20 microns size can be trapped by the swarf basket and /or filter bag

Advantages

Regular use also avoids foul smelling bacteria which causes irritation to human stun, resulting to cleaner and healthier working environment

By regular use of the SUCOIL the change cycle of coolant can be extended

SUCOIL promotes better oil handling and eliminates wastage through spillages

It improves the quality of production of machine tools and also the machine tool life

The machine saves expenses on cutting oils and coolants

Standard Accessories

Collection hose

Extension Pipe

Crevice nozzle with extension pipe

Crevice nozzle with flexible pipe

Technical Specifications



Motor (Induction) H.P., 415V 5
Vacuum Producer Stage 8
Vacuum mm WG 2400
Air Displacement m3/Hr 360
Coolant Capacity Ltr. 200
Swarf Capacity Ltr. 12
Dimensions
Length
Width
Height

mm
mm
mm

2300
700
1550
Rated Current Amp. 7.5
Motor Speed RPM 2880
Turbine Speed RPM 7500
Drive V Belt
